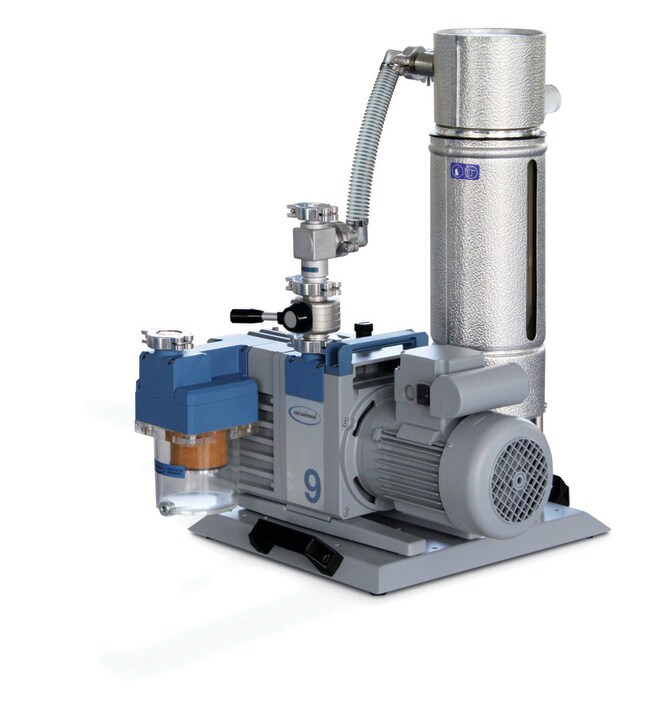

VACUUBRAND™ PC 3/RZ 9 Rotary Vane Pump

Product Code. 10547611
Change view
Click to view available options
Flow Rate:
5.2/6 CFM
Unit Size:
Each
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Flow Rate unitSize
10547611 5.2/6 CFM Each
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
This item is not returnable. View return policy
Product Code. 10547611 Supplier VACUUBRAND™ Supplier No. 20699895

Please to purchase this item. Need a web account? Register with us today!

This item is currently unavailable or has been discontinued.
View the product page for possible alternatives.
 View alternative products

This item is not returnable. View return policy

Description

The ideal solution for a wide range of laboratory and process applications that require high pumping speed.

  • The PC 3 rotary vane pumping unit, with the GKF 1000i cold trap at the inlet, helps the pump to handle large amounts of condensable vapors
  • Compact, user-friendly and well-arranged, with an oil mist filter at the outlet valve and a T-connection for a vacuum gauge
  • Very high flow rates even at vacuum levels approaching ultimate vacuum
  • High water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
  • Vacuum-tight at switch-off; external anti-suckback valve not needed
  • Large oil volume – long intervals between oil changes
  • Ease of maintenance due to telescopic design

Order Info

Includes

TRUSTED_SUSTAINABILITY

Specifications

Max. Vacuum 3 x 10-4 torr
Horsepower 0.5 hp
Includes CEE Plug, Cold Trap, Manual, Oil Mist Filter, T-Piece & Isolation Valve
Motor Speed 150 to 1800 rpm
Certifications/Compliance CE, DIN EN 1012-2:2011, DIN EN 12100:2001, DIN EN 50581:2013, DIN EN 61010-1:2011, DIN EN 61326-1:2013, IEC 61010-1:2010, TUV
Electrical Requirements 230 V 50/60 Hz

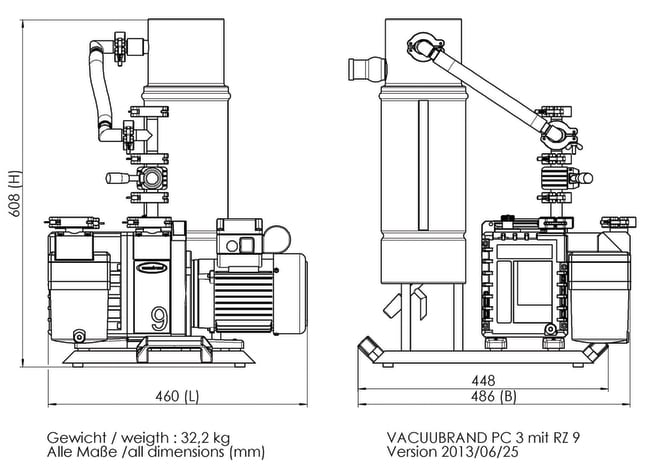

Dimensions (L x W x H) 460 x 486 x 608 mm
Model PC 3/RZ 9
Noise Level 52 dB(A)
Temperature (Metric) Storage -10°C to +60°C
Temperature (English) Max. 104°F
Temperature (Metric) Max 40°C
Temperature (Metric) Min. 12°C
Flow Rate 5.2/6 CFM
Frequency 50/60 Hz
Overall Height (Metric) 231.14 mm
Overall Length (Metric) 459.74 mm
Overall Width (Metric) 152.4 mm
Pump Type Rotary Vane Vacuum Pump
Enclosure Rating IP40
Temperature (English) Min 50°F
Oil Capacity 0.21 to 0.85 qt.
Applications Laboratory
No. of Stages 2
Maximum Pressure 16 psi
Voltage 230 V
