Bohlender™ BOLA™ Reactor Lids for Glass Reactors DN 150

Product Code. 17116944
Click to view available options
Includes:
Center Neck 1/2 in., Lateral Necks 1 x 1/4, 3 x 1/2 and 1 x 3/4 in.
Center Neck 1/2 in., Lateral Necks 2 x 1/4 and 3 x 1/2 in.
Center Neck 1/2 in., Lateral Necks 2 x 1/4, 2 x 1/2 and 1 x 1 in.
Unit Size:
Each
This item is not returnable. View return policy

Product Code. 17116944

Brand: Bohlender™ B15022

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Reactor lids for glass reactors with Schott flat flange. With screw in threads for connection of transition fittings and a center neck NPT 1/2 in.

  • Suitable for glass reactors DN 150 with SCHOTT flat flange
  • With screw-in threads for connection of transition fittings and a center neck NPT 1/2 in.
  • Easy assembly
  • Flexibly expandable
  • Completely made of PTFE
  • Universal chemical resistance
  • With connectors for the use of existing equipment with ground joint or GL thread

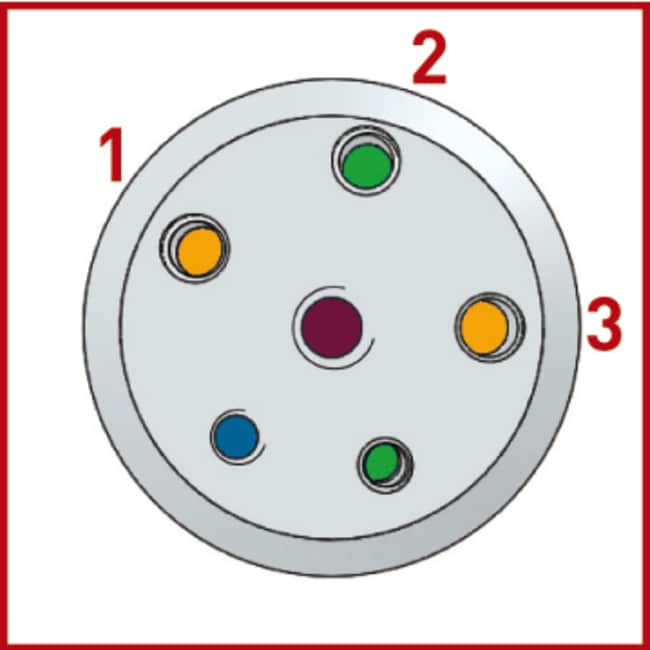

Thread connections in detail:

  • Centric thread connection (purple) for insertion of a stirrer bearing
  • Vertical thread connection (blue) with parallel alignment to the stirrer shaft
  • Inclined thread connection (yellow) with direction straight to the stirrer shaft
  • Inclined thread connection (green) with direction aside the stirrer shaft

Specifications

Includes Center Neck 1/2 in., Lateral Necks 2 x 1/4 and 3 x 1/2 in.
Type 6x Female Thread Center Neck
Material PTFE
For Use With (Equipment) Glass Reactors DN 150 with SCHOTT Flat Flange
Hose Connection No. NPT 1/2 in. directly to shaft, NPT 1/2 in. aside the shaft, NPT 1/4 in. aside the shaft, NPT 1/4 in. vertical
