Sanplatec™ Acrylic Vacuum Glove Box Clear View, VSC-1000

Product Code. 30242885
Click to view available options
Material:
Acrylic
Unit Size:
Each
This item is not returnable. View return policy
  • The vacuum glovebox is designed to withstand a full vacuum in both the main body and the pass box, but rapid suction and aspiration may cause damage and premature deterioration of the glovebox.
  • When used as a vacuum desiccator, be sure to use it with the glove port cover attached.
  • The vacuum gauge indicates the differential pressure between atmospheric pressure and the inside of the glove box.(Unit: MPa)
  • Internal operation under reduced pressure is not possible.

Product Code. 30242885

Brand: Sanplatec™ 6904+BS/RCVSC1000

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy
  • The vacuum glovebox is designed to withstand a full vacuum in both the main body and the pass box, but rapid suction and aspiration may cause damage and premature deterioration of the glovebox.
  • When used as a vacuum desiccator, be sure to use it with the glove port cover attached.
  • The vacuum gauge indicates the differential pressure between atmospheric pressure and the inside of the glove box.(Unit: MPa)
  • Internal operation under reduced pressure is not possible.

Description

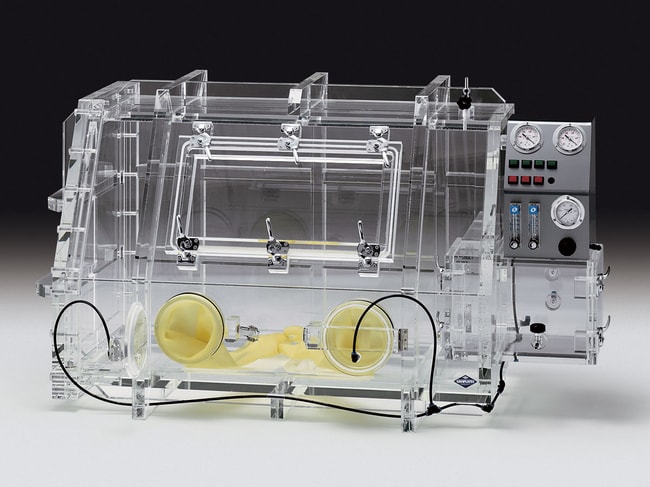

King size of all transparent acrylic glove box with auto-control unit for gas purge.

  • Acrylic glove box can be introduced at a lower cost compared to metal glove boxes.
  • With our unique technology, it excels in airtightness and strength.
  • Example of usage: Research on next-generation batteries, semiconductors, catalysts, analysis of trace minerals and samples, life science research etc.
  • VSC-1000 type allows you to detach the whole door on the left side from main body so that large equipment can be put in and out smoothly.

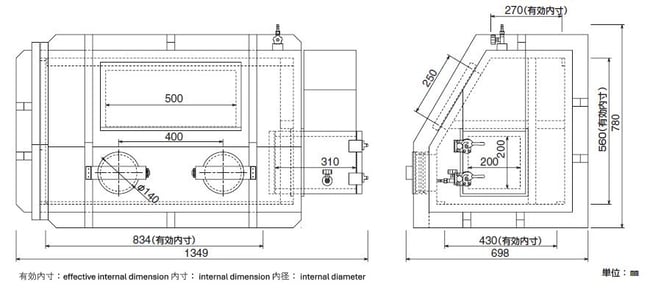

  • Front opening size: 250 x 500 mm
  • Easy gas purge operation via buttons to start or stop vacuum pump, exhaust and supply gas.
  • The inner diameter of pass box: 310W x 200D x 200H mm
  • Valve on main body and pass box: each 1pc, nozzle diameter 9 mm
  • Glove and Glove band: 1 set
  • Glove port door: 1 pair (when used in decompression)
  • Unit (control box)
  • Spec
  • Vacuum gauge: main body, pass box each 1pc (0 to 0.1MPa)
  • Pressure gauge: 1pc (0 to 1MPa)
  • Regulator: 1pc
  • Flow meter: main body 1pc(2.5 to 25 L/min.), pass box 1pc(1 to 10 L/min.)
  • Weight: approx. 6 kg
  • With our custom-made solutions, we accommodate a variety of requests, including size and shape modifications.

Specifications

Product Type Glove Box
Filter Type None
Lighting Type None
Material Acrylic
Weight (Metric) 145 kg
